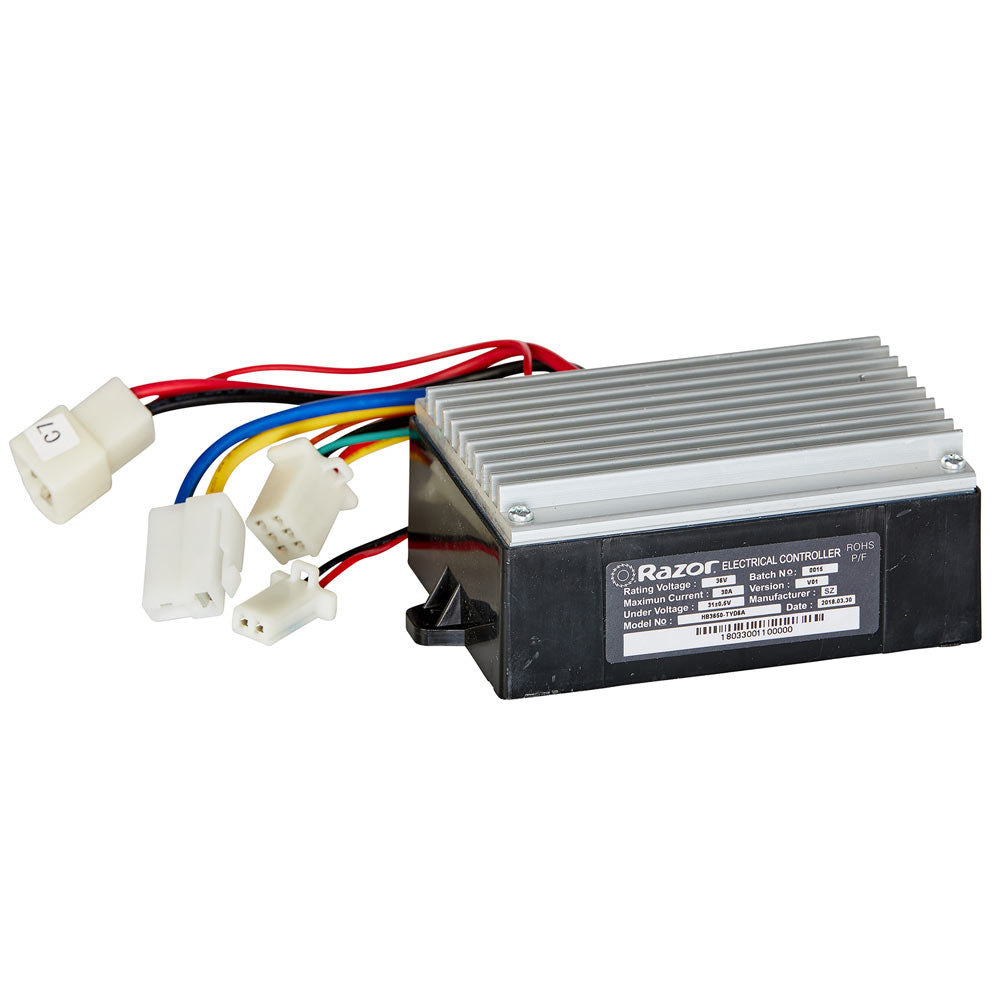

Genuine Variable Speed Control Module (4-Connector) for Razor Crazy Cart XL (V1+) — Part #W25143401015

The control module is the most critical electronic component in the Crazy Cart XL's drivetrain. It receives the signal from the foot pedal throttle, interprets the rider's input, and delivers precisely regulated power from the 36V battery pack to the 500W motor — translating a gentle press of the pedal into smooth, progressive acceleration, and a full press into the full-power drift performance the XL is built for.

When the control module fails, the symptoms are unmistakeable: the cart refuses to move despite a fully charged battery, moves only at full speed with no throttle control, surges and cuts out unpredictably, or triggers the battery's protection circuit and shuts down immediately on throttle input. In every one of these cases, the control module is the most likely cause — and this genuine replacement is the correct and complete solution.

This is the genuine factory replacement control module for the Razor Crazy Cart XL (Version 1 and above), featuring variable speed control and a 4-connector wiring configuration matched exactly to the XL's wiring harness. It is the highest-value electronic repair available for the Crazy Cart XL, restoring the full spectrum of throttle response — from the gentlest creep to full-power acceleration — that defines the XL riding experience

True Variable Speed Control — Not On/Off Power — This is the most important distinction between the genuine control module and aftermarket alternatives. The genuine module delivers continuously variable power output across the full throttle range, giving the rider precise, progressive control at every speed. Generic replacements frequently deliver only on/off switching — full power or nothing — which fundamentally changes the riding experience and makes the cart significantly harder to control, particularly for less experienced riders.

36V / 500W Rated — Built for the XL's Drivetrain — The Crazy Cart XL operates at 36 volts and uses a 500W motor — double the voltage and double the power of the standard Crazy Cart. This genuine module is rated and calibrated for the XL's specific voltage and current demands. A module rated for a lower voltage or current will overheat under the XL's motor load and fail prematurely, potentially damaging the motor and wiring harness in the process.

4-Connector Configuration — Exact Wiring Harness Match — The 4-connector wiring configuration is the critical fitment detail that distinguishes the XL control module from the standard Crazy Cart module (W25143490015, which uses a different connector count and layout). This genuine module connects directly to the XL's wiring harness without modification, adaptation, or re-pinning.

Foot Pedal Throttle Compatibility — The Crazy Cart XL uses a foot pedal accelerator rather than the hand throttle found on the standard Crazy Cart. This genuine module is calibrated specifically for the XL's foot pedal throttle signal range, ensuring accurate and responsive throttle control across the full pedal travel.

Genuine Factory Fit — No Modifications Required — As a genuine manufacturer part, the module's mounting dimensions, connector positions, and wiring harness compatibility align exactly with the Crazy Cart XL chassis across all versions. No modification, re-wiring, or additional hardware is required.

Razor Crazy Cart XL
Version 1 and above

Important — do not fit this module to the standard Crazy Cart: The standard Crazy Cart (W25143490015) and the Crazy Cart XL (W25143401015) use different control modules with different voltage ratings, connector counts, and throttle calibrations. Fitting the XL module to a standard Crazy Cart, or vice versa, will result in incorrect operation and may damage the motor and wiring harness.How to identify your version: Locate the barcode sticker on your battery cover or the bottom of the frame. The 7th and 8th digits of the product ID code indicate your version number (e.g., ""01"" = Version 1).Check the fuse before replacing the module: A blown 30 amp fuse is a common cause of a non-moving Crazy Cart XL that is frequently misdiagnosed as a control module failure. Check and replace the fuse before fitting a new module to avoid an unnecessary repair
